Reproducible R workflows

targets, renv, and GitHub Actions

Lucy Andrews

2026-05-14

What do we mean by reproducibility?

  • The same inputs and code can regenerate the same outputs
  • The project records the software environment needed to run
  • The workflow makes dependencies and execution order explicit
  • Changes can be checked automatically before results are trusted

Sometimes projects are reproducible only in the author’s head!

  • Scripts must be run in the “right” order
  • Some outputs are saved manually
  • Package versions are unknown
  • Results may be stale relative to the code
  • No automated check confirms that the project still runs

A reproducible project has a visible chain of evidence

Three recurring reproducibility problems

Problem Tool What it protects against
“What order do I run the scripts in?” targets Hidden dependencies, stale outputs
“Why does this work on my machine but not yours?” renv Package version drift
“How do I know this still works?” GitHub Actions Silent breakage, collaboration risk

Worked example: Palmer penguins

Analytical question: How do body mass patterns differ among penguin species and islands?

Illustration by Allison Horst

Worked example: Palmer penguins

The workflow produces:

  • Cleaned analysis dataset
  • Summary tables by species and island
  • Exploratory figure
  • Simple linear regression model
  • Rendered Quarto report

The workflow produces analysis artifacts

outputs/
├── penguins_clean.rds
├── species_summary.csv
├── body_mass_plot.png
├── model_summary.rds
└── report.html

The pipeline defines what the products are and how to make them.

A reproducible repository has a shape

reproducible-r-workflow-demo/
├── _targets.R
├── renv.lock
├── .Rprofile
├── README.md
├── *.Rproj
│
├── R/
│   ├── data.R
│   ├── clean.R
│   ├── summarize.R
│   ├── visualize.R
│   └── model.R
├── reports/
│   └── penguins_report.qmd
│
├── slides/
│   └── reproducible_r_workflows.qmd
│
├── outputs/
│
├── data/
│
└── .github/
    └── workflows/
        ├── run-targets.yaml
        └── publish-slides.yaml

What belongs where?

Location Purpose
_targets.R Defines the workflow
R/ Stores reusable analysis functions
reports/ Quarto reports that consume pipeline outputs
slides/ Presentation materials
renv.lock Records package versions
.github/workflows/ Automated checks
outputs/ Derived analysis products

targets turns an analysis into a pipeline

  • Defines the steps of an analysis as a list of targets
  • Tracks dependencies among objects and files
  • Skips work that is already up to date
  • Rebuilds downstream results when upstream code or data change

Scripts can suggest order implicitly, pipelines make it explicit

Script sequence

source("01_clean_data.R")
source("02_summarize.R")
source("03_figures.R")
source("04_report.R")

This order is a convention. It is not enforced.

Pipeline

list(
  tar_target(raw_penguins,
    get_penguins()),
  tar_target(clean_penguins,
    clean_penguins_data(raw_penguins)),
  tar_target(species_summary,
    summarize_by_species(clean_penguins)),
  tar_quarto(report,
    "reports/penguins_report.qmd")
)

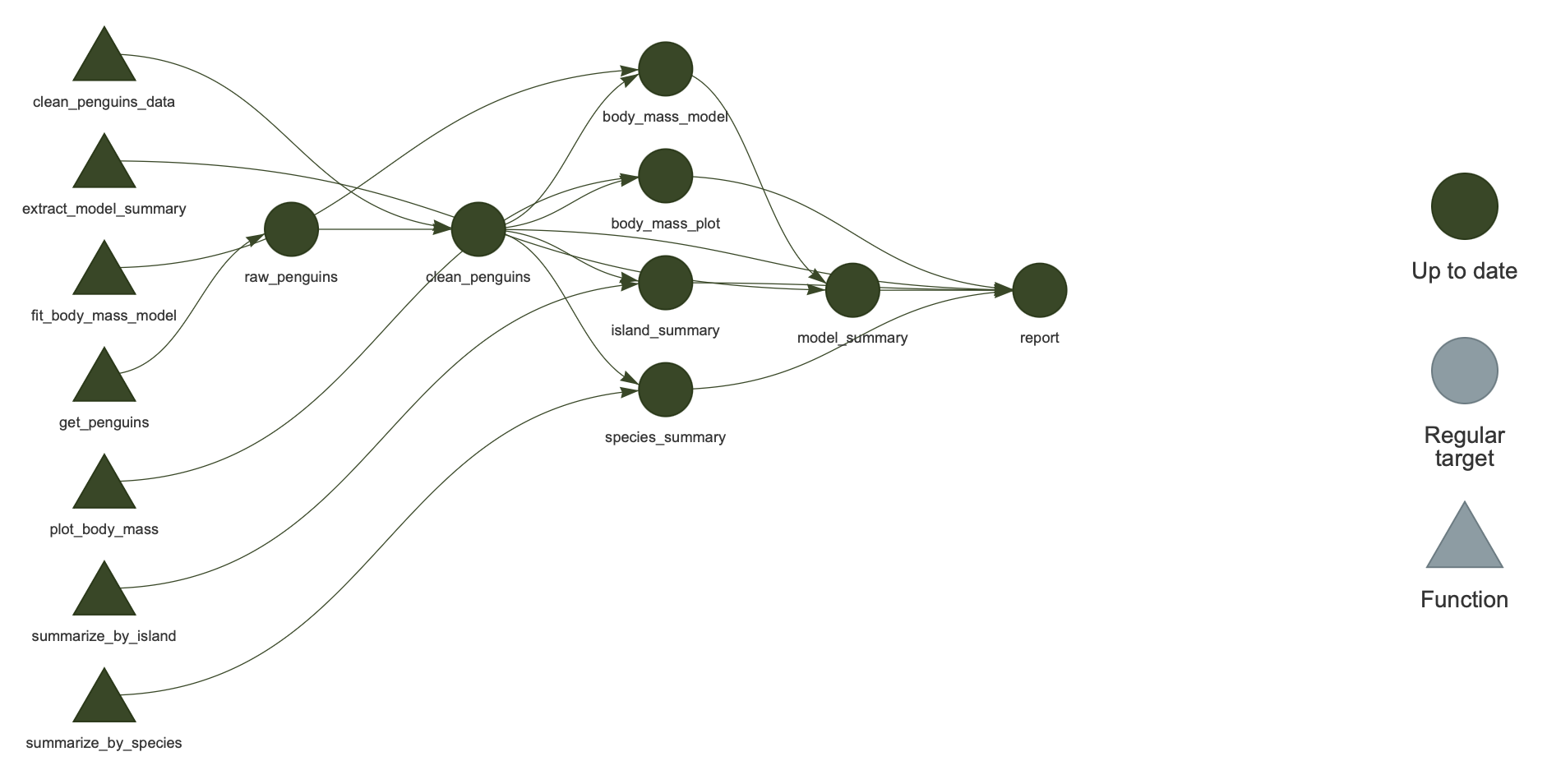

The workflow can be visualized

targets::tar_visnetwork() renders this interactively.

What needs to rerun?

If clean_penguins_data() changes, targets rebuilds:

  • clean_penguins
  • species_summary, island_summary
  • body_mass_plot, body_mass_model
  • report

Unrelated targets are skipped.

targets::tar_outdated()   # shows what needs to run
targets::tar_make()       # runs only what is out of date

The same code can behave differently in a different R environment

  • Packages change over time
  • Collaborators may have different package versions installed
  • A lockfile records the exact package environment
  • Continous integration starts from a completely clean machine

renv records the project environment

# Start project-specific dependency tracking
renv::init()

# Record current package versions to renv.lock
renv::snapshot()

# Recreate the recorded environment elsewhere
renv::restore()

The lockfile becomes part of the reproducible record — commit it.

What gets committed?

File or folder Commit? Why
renv.lock ✅ Yes Records package versions
renv/activate.R ✅ Yes Activates the project environment
renv/settings.json ✅ Yes Records project renv settings
renv/library/ ❌ No Local package cache; machine-specific

Continuous integration asks: does this project still run from scratch?

  • Runs checks on a clean machine with no local state
  • Detects missing or unrecorded dependencies
  • Detects broken code after changes
  • Makes reproducibility visible to collaborators

The GitHub Action restores and runs the workflow

name: Run targets workflow
on:
  push:
    branches: [main]
  pull_request:
    branches: [main]

jobs:
  run-targets:
    runs-on: ubuntu-latest
    steps:
      - name: Check out repository
        uses: actions/checkout@v4
      - name: Set up R
        uses: r-lib/actions/setup-r@v2
        with:
          r-version: '4.5.2'
          use-public-rspm: true
      - name: Set up pandoc
        uses: r-lib/actions/setup-pandoc@v2
      - name: Set up Quarto
        uses: quarto-dev/quarto-actions/setup@v2
      - name: Install system dependencies
        run: sudo apt-get install -y libglpk-dev
      - name: Restore R package environment
        uses: r-lib/actions/setup-renv@v2
      - name: Run targets pipeline
        run: Rscript -e 'targets::tar_make()'

CI is a reproducibility check, not scientific peer review

CI helps confirm

  • The workflow runs on a clean machine
  • Dependencies are declared
  • Outputs can be regenerated
  • Code changes do not break execution

CI does not confirm

  • The analysis is scientifically correct
  • The model is appropriate
  • Input data are valid
  • Results are meaningful

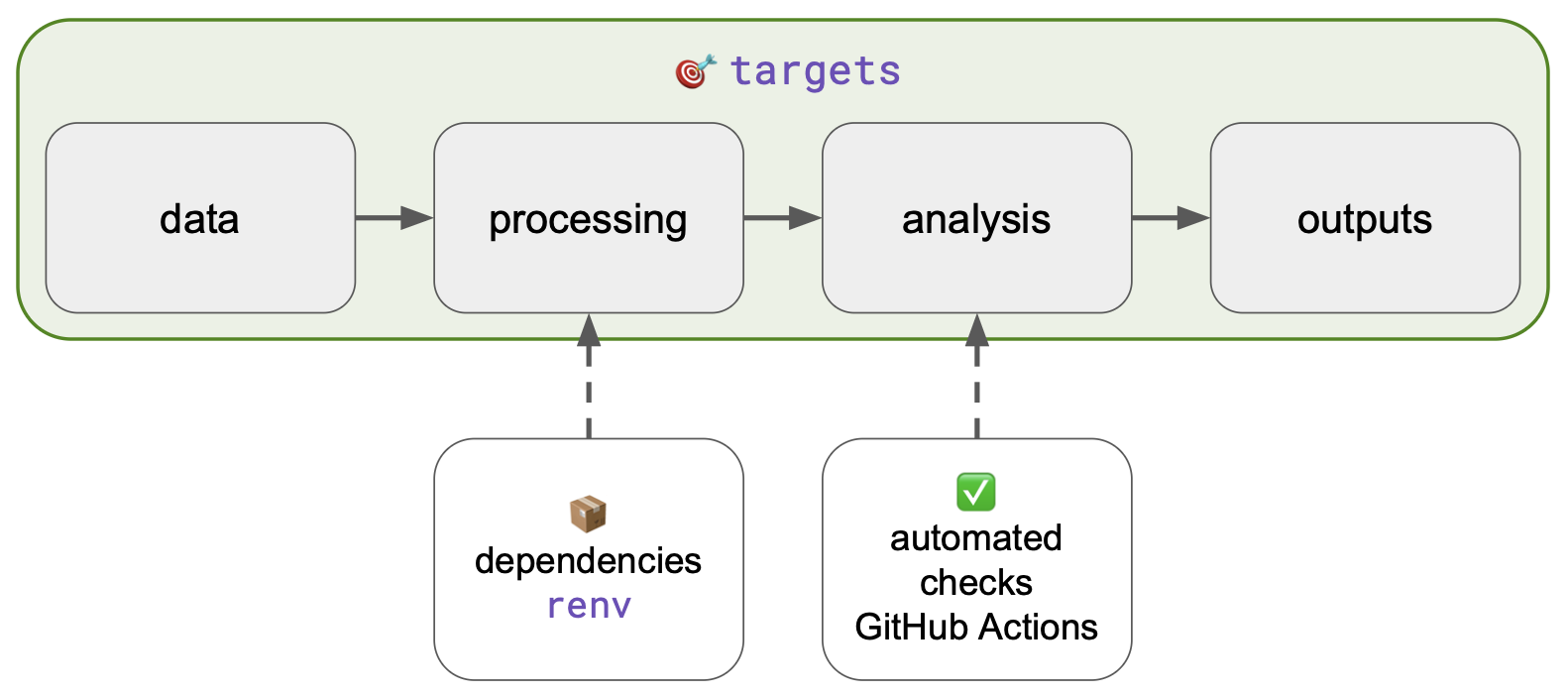

The reproducibility stack

Layer Question it answers
Repository structure Where is everything?
R functions What does each step do?
targets What depends on what?
renv What software versions are needed?
GitHub Actions Does it still run elsewhere?
Quarto How are results communicated?

Adoption can be incremental

  1. Put the analysis in a well-structured R project
  2. Move repeated code into functions
  3. Add renv and commit renv.lock
  4. Add targets for the main workflow
  5. Add GitHub Actions to run the workflow automatically
  6. Add Quarto reports or slides that draw from pipeline outputs

Common pitfalls and better practices

Pitfall Better practice
One giant script Small functions plus a pipeline
Manual intermediate files Define outputs as named targets
Untracked package versions Commit renv.lock
CI installs the latest packages Restore from renv lockfile
Reports do hidden analysis Reports consume pipeline outputs

Tutorial repo to be shared

https://github.com/lucy-dwr/reproducible-r-workflow-demo

  1. Open _targets.R — each target is an analysis product.
  2. Run targets::tar_visnetwork()
  3. Run targets::tar_make()
  4. Modify one plot label or summary function.
  5. Run targets::tar_outdated()
  6. Run targets::tar_make() again — only affected targets rebuild.

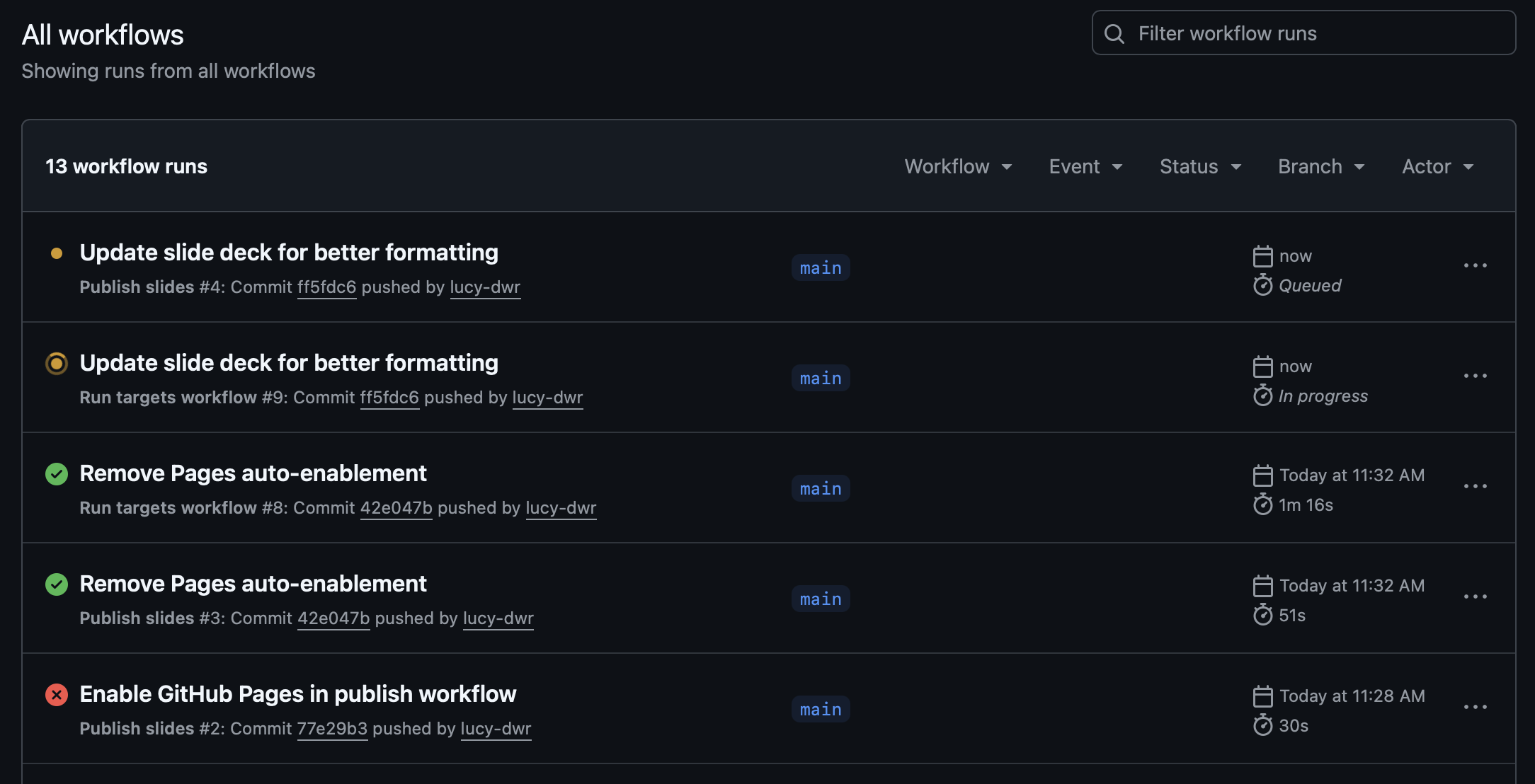

  7. Open GitHub Actions and show the most recent successful run.

Reproducibility is a workflow, not a single tool

  • targets makes the analysis workflow explicit
  • renv records the software environment
  • GitHub Actions checks that the project still runs
  • Quarto turns reproducible outputs into communication products

The goal is not to make analyses more complicated. The goal is to make the complexity visible, testable, and easier to maintain.
